enables remote monitoring
Ethernet/PROFIBUS DP gateway with integrated Web server for communication with PROFIBUS devices

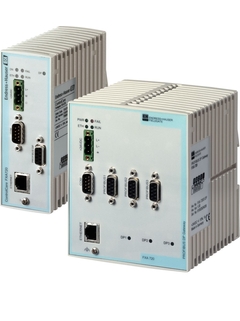

Fieldgate FXA720 is a gateway with integrated Web server for communication with PROFIBUS devices. Within a control system, Fieldgate FXA720 ensures transparent vertical communication by acting as a simple passthrough gateway. A CommDTM allows it to be integrated into a FDT frame application such as FieldCare. For Web applications, the unit contains a Web server that generates HTML pages for viewing in a standard internet Web browser. It also offers XML data for e.g. Office applications.
Quick set-up via Web browser, no configuration tool necessary, communication via Internet, worldwide access to sensor data
User Management, limits access to authorised persons
Integrated Web server, values available to any Web browser
Alarming and event messaging, E-mail about device status
Data offered in HTML and XML format, seamless data integration into MS Office, P View and FieldCare
CommDTM supplied, simple integration into FDT frame applications, e.g. FieldCare
Monitoring via OPC, OPC server can be supplied
Field of application
For inventory control, remote monitoring and device diagnosis, the connected devices can be viewed with a Web browser. For web-based applications, the devices to be monitored or configured are connected to the gateway via max. 3 RS-485 ports. For network applications, when used as an Ethernet/PROFIBUS gateway, the gateway will normally provide the connection between host applications running on Ethernet and PROFIBUS devices connected to a PROFIBUS DP/PA network.
